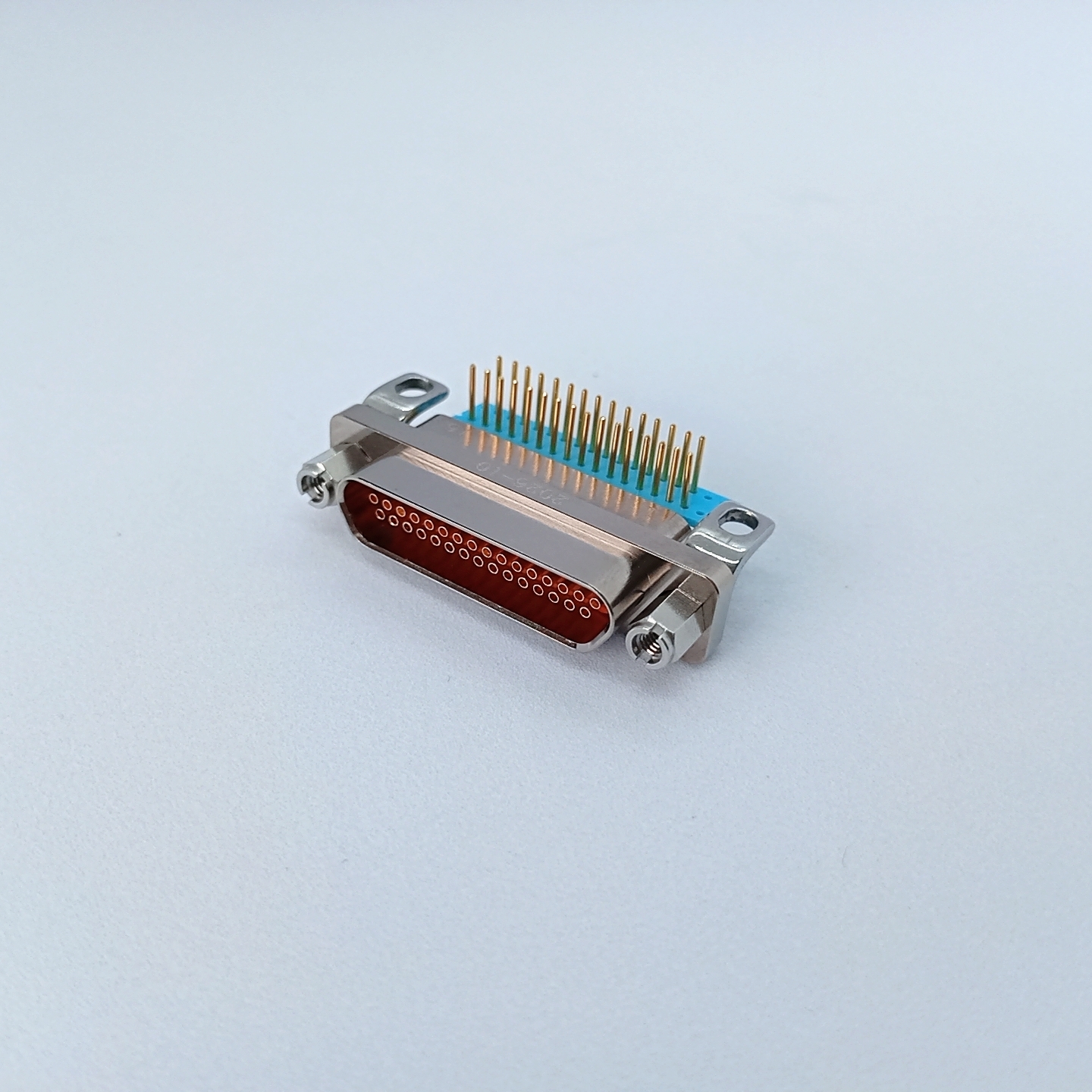

rectangular connector J30J-25TJWP7-J right angel 25 pin male connector
J30J-25TJWP7-J is a 25-pin Micro-D micro rectangular male right-angle PCB plug with a 1.27mm ultra-fine contact pitch and P7 locking assembly. It adopts twisted stranded elastic gold-plated contacts, which maintain stable contact force under severe mechanical shock and random vibration to prevent intermittent signal dropout. Compliant with GJB2446A standard and mechanically interchangeable with MIL-DTL-83513 MDM Micro-D connectors, this connector supports 3A rated current per contact and works within -55℃ ~ +125℃. Widely used in aerospace, avionics, UAV, radar, shipborne electronics, test & measurement instruments and high-reliability industrial & medical equipment, we provide fast samples, custom cable harness assemblies and OEM service; contact us for full datasheet and bulk quotation.
Product display
Product Performance Details
| Product model |
J30J-25TJWP7-J
|
Contact resistance |
≤10mΩ |
| Ambient temperature |
-55℃~+125℃ |
Insulation resistance |
≥5000MΩ
|
| Vibration |
10Hz~2000Hz 196m/s2 |
Medium pressure resistance |
800V |
| Random vibration |
Power spectral density is 0.4G2 /Hz and the root mean square value of the total acceleration rate is 23.1G
|
Mechanical life
|
500 times
|
| Impact |
735m/s2 11ms
|
Rated current |
3 A
|
