2PM Circular Connector 2PM22K10QB2 10 Pin Female Cable Plug Thread Lock Solder Type
2PM22K10QB2 is a high‑reliability circular cable plug widely used for industrial interconnection systems. This variant is a straight female cable plug, designed for cable‑to‑panel mating with matching male receptacle 2PM22J10ZB2.
It adopts precision die‑cast aluminum‑alloy housing with anti‑oxidation treatment, offering excellent mechanical strength and dust resistance. The threaded locking coupling ensures firm engagement, effectively preventing accidental disconnection caused by vibration, impact and long‑term equipment operation.
Contacts are copper‑alloy base with silver‑plated surface, featuring low contact resistance, stable conductivity and good anti‑oxidation performance. Supports long‑term power and signal transmission with rated mechanical life up to 500 mating cycles.
This solder‑type plug enables straightforward wire soldering operations, convenient for mass harness processing. Operating temperature covers ‑60℃ ~ +200℃, performing reliably in extreme cold, high‑heat, humid and dusty field environments.
Commonly deployed in on‑board systems, field test instruments, industrial control units and auxiliary mechanical equipment. It is a cost‑effective robust interconnection solution for harsh working scenarios.
Product display
Product Performance Details
| Product model |
2PM22K10QB2 |
Insulation resistance |
≥1000MΩ (normal), ≥20MΩ (damp heat) |
| Ambient temperature |
-60℃~+200℃(bakelite) |
Shock acceleration |
Once at 500g, multiple times at 100g |
| Vibration acceleration |
10~5000Hz 50g |
Working voltage |
≤560V |

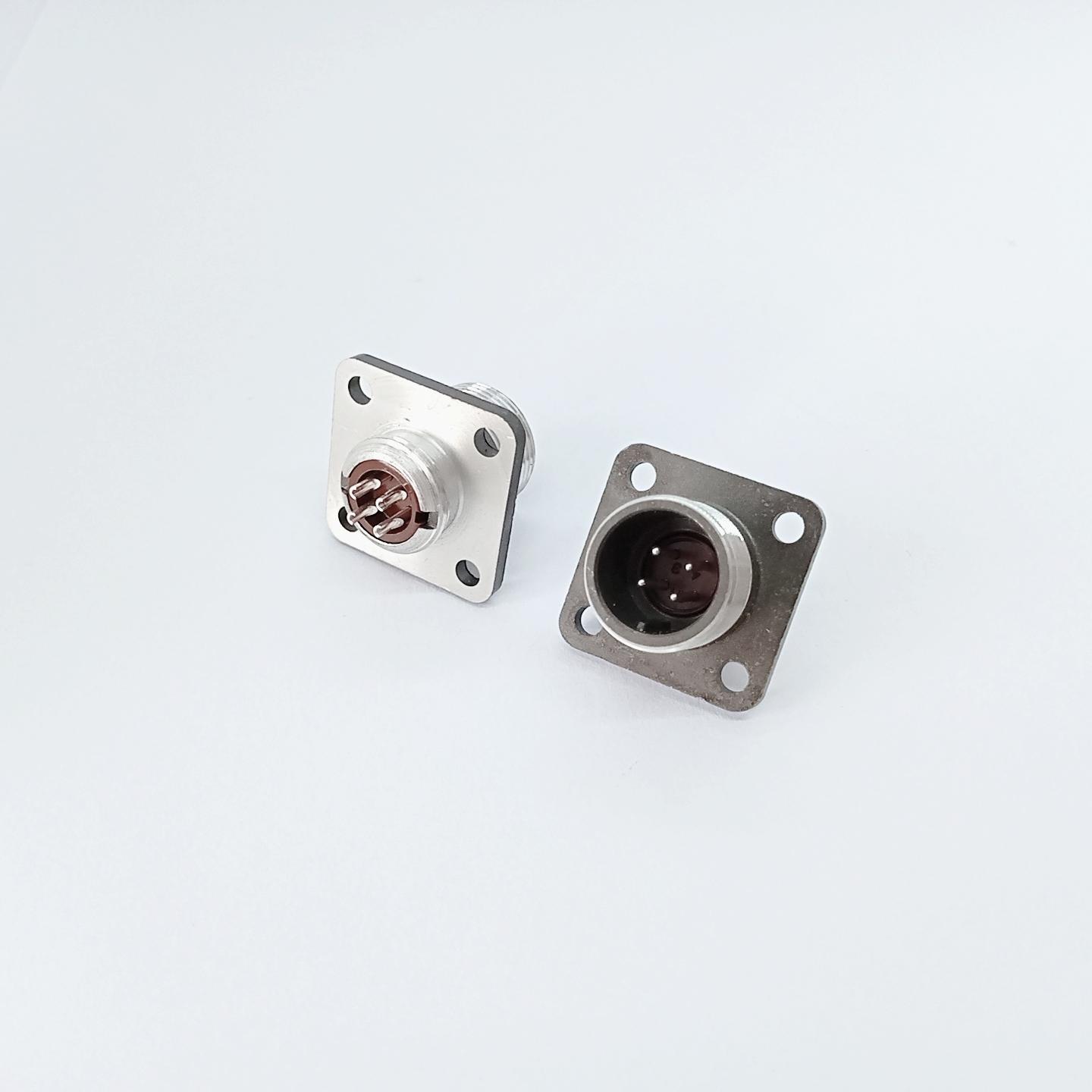

Physical product display

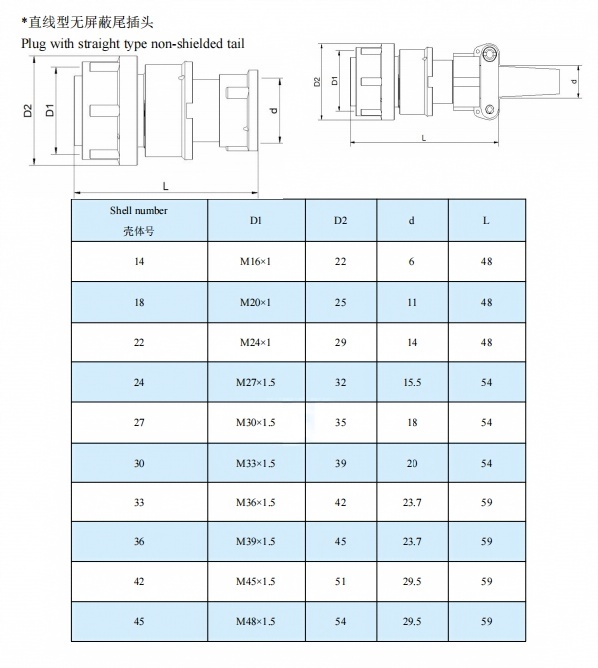

Product external dimensions
Related product recommendations
Display of Strength
Production Plant Area
Machining production workshop
Precision Assembly Production Workshop
Glass-to-metal sealed production workshop
Obtained Certification Certificate
Customer visit
Product packaging
Packaging and Shipping
- Standard export carton
- As per customized specifications such as logo or others According to customers' requirements
- Delivery time:Within 24 hours for stocks, 3-4 weeks for mass production orders. (based on different quantities,ODM, etc.)
