Y27A Series Aviation Plug Connector with 55 High-Density Socket Contacts 1500V Withstand Voltage and Wide Temperature Resistance

MOQ : 10 pcs

Place of Origin : China

Payment Terms : T/T,D/P,Western Union

Brand Name : ZSX

Withstand voltage : 1500V

Model Number : Y27A-2455ZJ4B1M

Price : $52.80-$64.50 (Depending on the quantity)

Packaging Details : Carton packaging

Certification : ISO9001

Delivery Time : 5-8 Days

Boday Material : Aluminum alloy

Gender : Female

Supply Ability : 1000000Pcs/Year

Name : Y27A Series Connector

Insulator material : PPS

Working temperature : -55℃~+125℃

Contact Now

Aviation Plug Y27A-2455ZK4B1M Four-hole Flange 51 Pin Socket Connector

The Y27A-2455ZK4B1M is a push-pull circular receptacle featuring a #24 shell and 55 high-density socket contacts. This connector utilizes square flange mounting with foolproof positioning and rear-release crimping for fast blind mating. It delivers stable 500V/5A electrical performance with wide temperature resistance (-55℃ to +125℃), excellent vibration and salt spray durability, and over 500 mating cycles. Widely used in aerospace and industrial control systems, it supports 22-24AWG UL21307/UL20276 shielded cables and mates with Y27A-2455TJ4B1M plug.

Product Performance Specifications

Product Model	Y27A-2455ZK4B1M	Contact Piece	Gold plating of copper alloy
Shell Material	Aluminum	Insulation Resistance	4000MΩ
Vibration	10Hz~2000Hz 196m/s²	Working Voltage	600V
Insulator	Thermosetting plastics	Mechanical Life	500 times
Impact	980m/s²	Relative Humidity	92% to 98% at 40±2℃
Collision	Acceleration 980m/s²	Withstand Voltage	1300V
Working Temperature	-55℃ ~ +125℃	Working Current	5A

Product Images

Y27A Series Aviation Plug Connector with 55 High-Density Socket Contacts 1500V Withstand Voltage and Wide Temperature Resistance

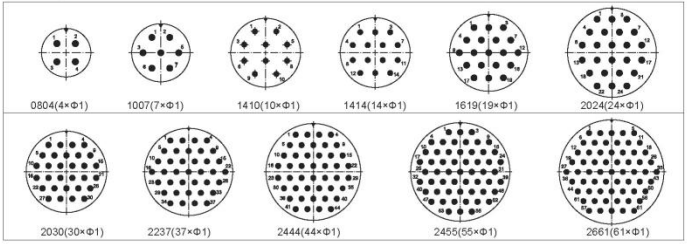

Product Dimensions

Related Products

Manufacturing Capabilities

Machining Production Workshop

Precision Assembly Production Workshop

Glass-to-Metal Sealed Production Workshop

Certifications

Customer Engagement

Packaging & Shipping

Standard export carton packaging
Customized specifications including logos available per customer requirements
Delivery time: Within 24 hours for stock items, 3-4 weeks for mass production orders (varies based on quantity and ODM requirements)

Frequently Asked Questions

Are you a trading company or manufacturer?

Our company is a comprehensive manufacturer with 17 years of R&D, manufacturing and sales experience in Aeronautics and Astronautics and commercial RF microwave transmission components.

What are the main products of your company?

Main products: RF coaxial connectors and adapters, RF cable assemblies, miniature rectangular electrical connectors and cable assemblies, coaxial waveguide converters and cable assemblies, glass insulator sealed connectors and other microwave products.

Does your company accept customized products?

We accept ODM (Original Design Manufacturing).

Does your company provide free samples?

We support free samples with freight paid on delivery.

What is the minimum order quantity of your company's products?

200 pieces. The price is higher for orders under 200 pieces.

Which logistics company does your company ship through?

Our company cooperates with international logistics companies DHL, UPS, FedEx, TNT year-round to ensure our customers receive their goods quickly with competitive shipping costs. We also offer air and sea freight options.

How long does it usually take to receive the goods?

Generally, 3-8 working days for international express, 5-8 working days for air freight.

What payment methods does your company accept?

We accept L/C, T/T, Western Union, Trade Assurance (credit card & T/T).

How long is your warranty?

The warranty period is three months.
