J14Q‑15TKL 15 Pin Plug Socket Contacts Cable Type Solder Termination Screw Locking Type Connector
The J14Q-15TKL is a 15-pin screw-locked micro rectangular cable plug connector featuring high-reliability wire-spring socket contacts and solder termination. Designed with anti-vibration locking and anti-misinsertion structure, it provides stable, low-resistance signal transmission under harsh environments from -55℃ to +125℃. Widely used for aerospace equipment and precision instrument internal wiring interconnection.
Product display
Product Performance Details
| Product model |
J14Q-15TKL |
Acceleration |
780m/s2 |
| Ambient temperature |
-55℃~+125℃ |
Rated current |
3 A |
| Vibration |
10Hz~2000Hz 196m/s2 |
Contact resistance |
≤10mΩ |
| Relative humidity |
At 40±2℃,90% to 95% |
Insulation resistance |
≥1000mΩ |
| Impact |
980 m/s2 11ms |
Atmospheric pressure |
101.3KPa-1.33Pa |
| Withstand voltage |
800 V |
Mechanical life |
500 times |

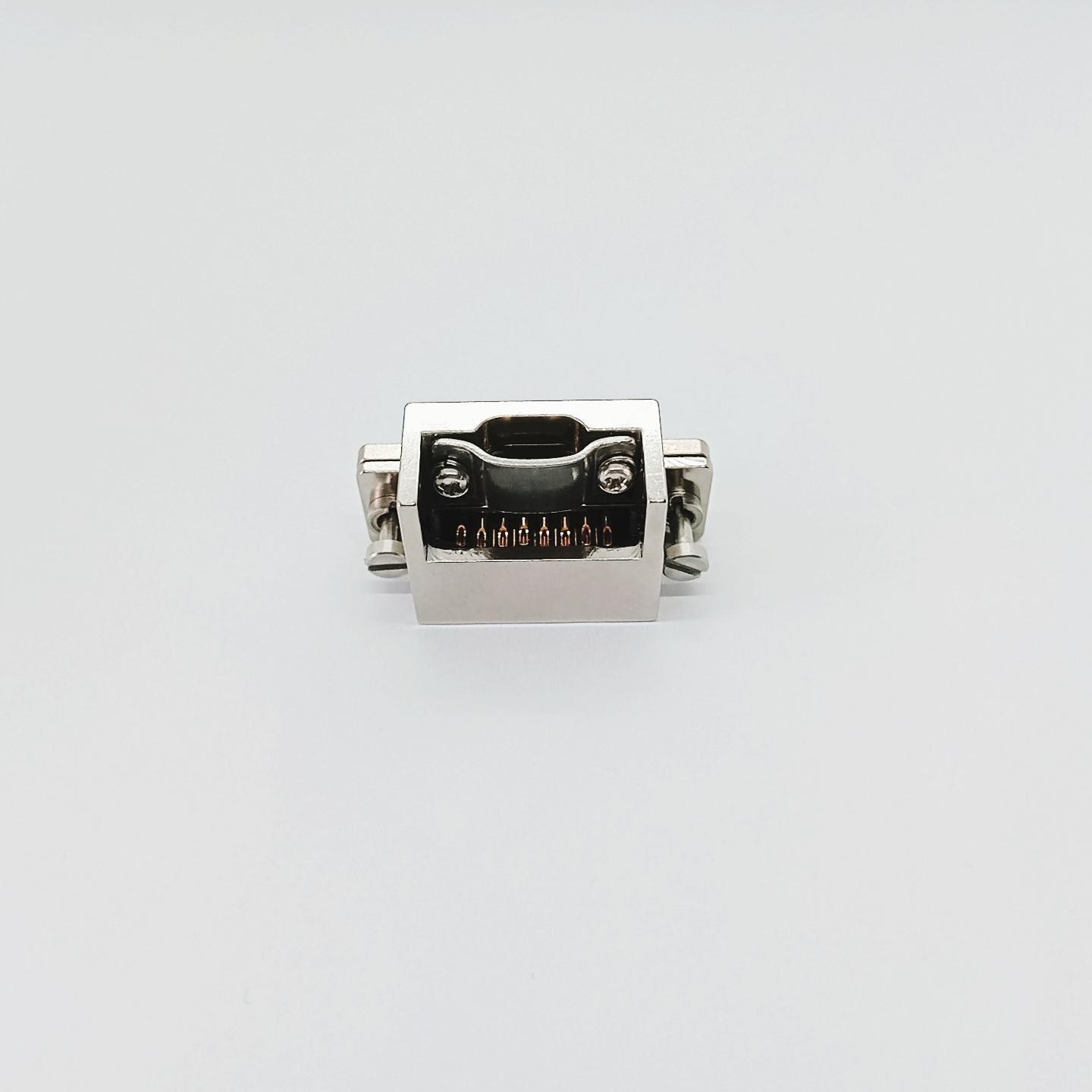

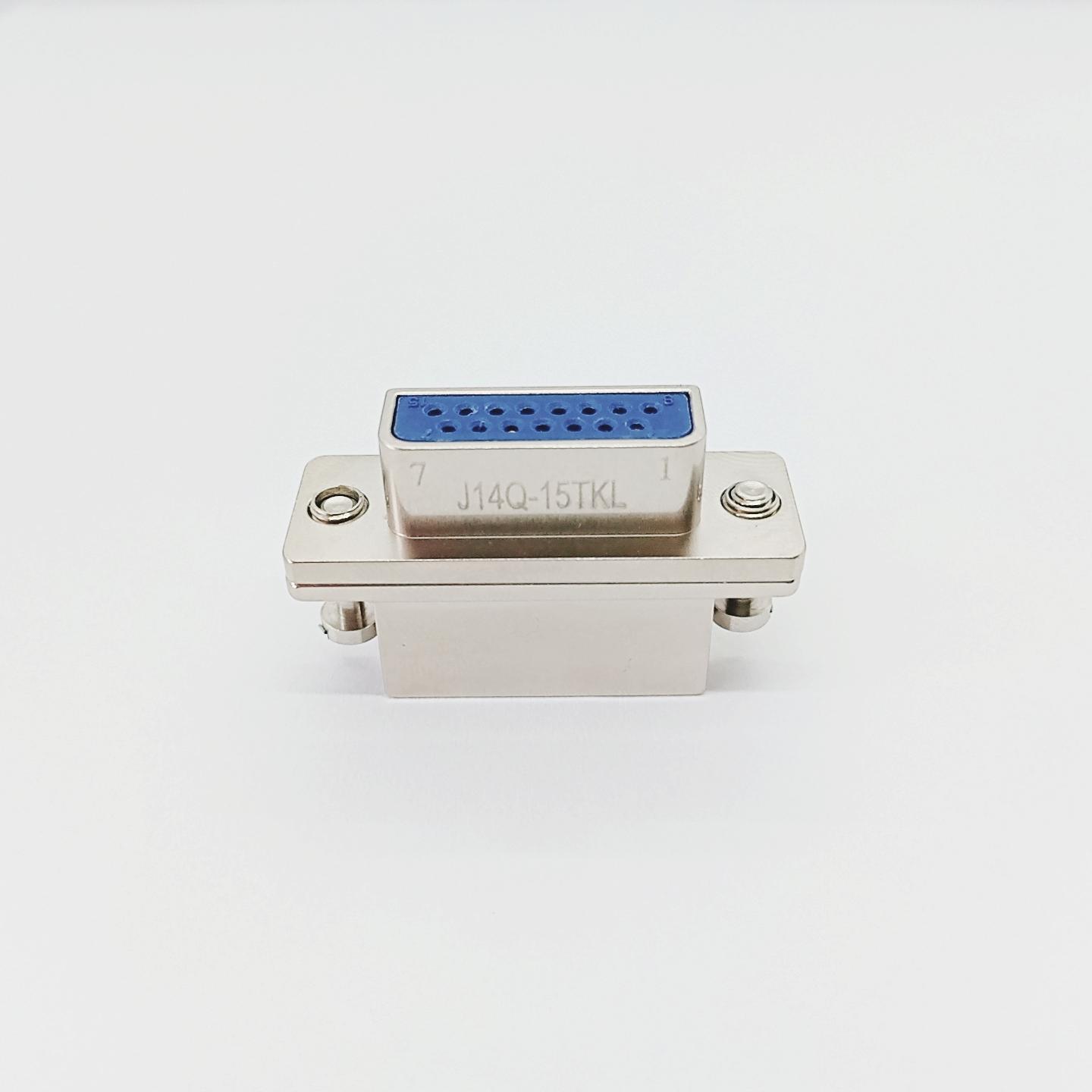

Physical product display

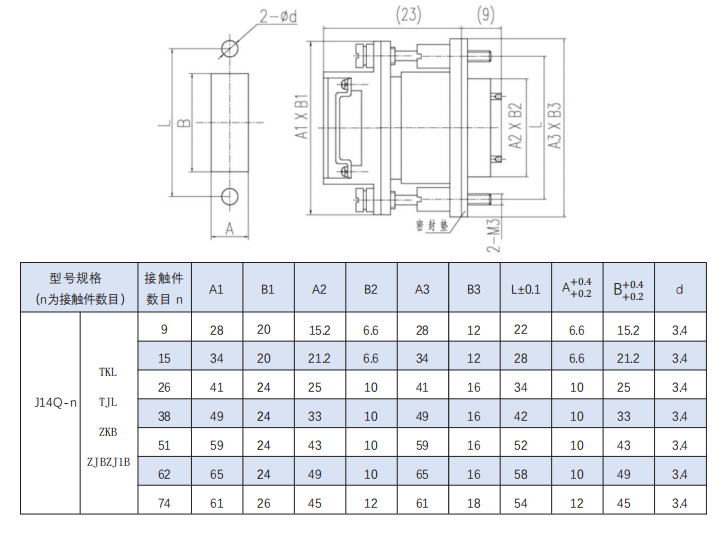

External dimensions of the product
Related product recommendations
Product selection reference
Display of Strength
Production Plant Area
Machining production workshop
Precision Assembly Production Workshop
Glass-to-metal sealed production workshop
Obtained Certification Certificate
Customer visit
Product packaging
Packaging and Shipping
- Standard export carton
- As per customized specifications such as logo or others According to customers' requirements
- Delivery time:Within 24 hours for stocks, 3-4 weeks for mass production orders. (based on different quantities,ODM, etc.)
