J30J Plug Micro-D Connector with Precision Twisted Wire Elastic Pins, Metal Casing, and High-Temperature Resistant PPS Insulator

Brand Name : ZSX

Model Number : J30J-31TJN-J

Certification : ISO9001

Place of Origin : China

MOQ : 10 pcs

Price : Depending on the quantity

Payment Terms : T/T,D/P,Western Union

Supply Ability : 1000000Pcs/Year

Delivery Time : 5-8 Days

Packaging Details : Carton packaging

Name : J30J Connector J30J-31TJN-J

Gender : Female

Boday Material : Metal

Insulator material : PPS

Working temperature : -55℃~+125℃

Specification : 9~144 pins

Contact Now

M83513 – Micro-D Connectors J30J Plug Straight Insertion Type PCB J30J-31TJN-J

Product Overview

J30J series of micro rectangular electrical connectors comply with GJB2446A (equivalent to MIL-DTL-83513), corresponding to the American MDM series products. They adopt precision twisted wire elastic pins (precision twist pins), with a contact piece spacing of 1.27mm. The product is compact in size with a metal casing and comes in 12 specifications ranging from 9 to 144 pins.

The insulator material uses PPS to meet the requirements of high-temperature resistance and aerospace applications. Plugs and sockets feature threaded locking, guidance, and misinsertion prevention. Termination forms include crimping, direct insertion, bending insertion, and welding, with crimped wire cross-sectional area of 0.1mm² to 0.15mm², suitable for various electronic and electrical systems requiring high density, miniaturization, lightweight, and high reliability.

Product Performance Specifications

Parameter	Specification
Product Model	J30J-31TJN-J
Contact Resistance	≤10mΩ
Ambient Temperature	-55℃~+125℃
Insulation Resistance	≥5000MΩ
Vibration	10Hz~2000Hz 196m/s²
Medium Pressure Resistance	800V
Random Vibration	Power spectral density 0.4G²/Hz, RMS acceleration 23.1G
Mechanical Life	500 cycles
Impact	735m/s² 11ms
Rated Current	3A

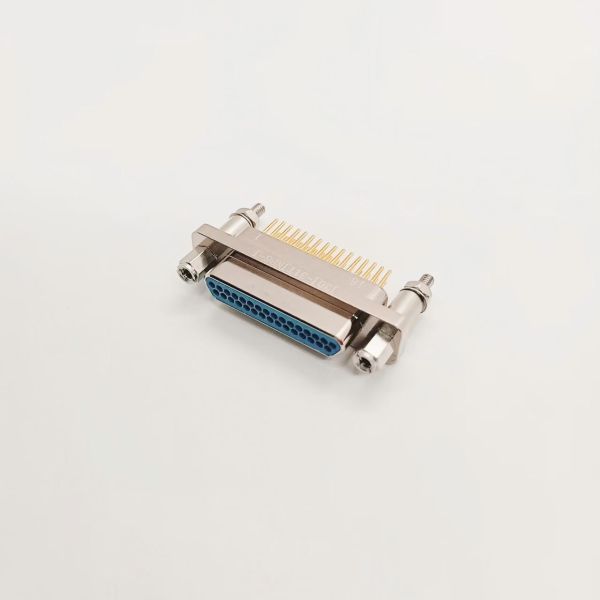

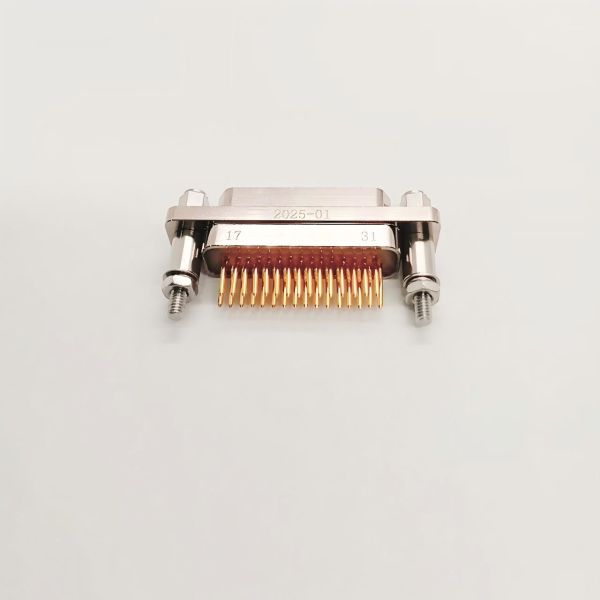

Product Display

J30J Plug Micro-D Connector with Precision Twisted Wire Elastic Pins, Metal Casing, and High-Temperature Resistant PPS Insulator

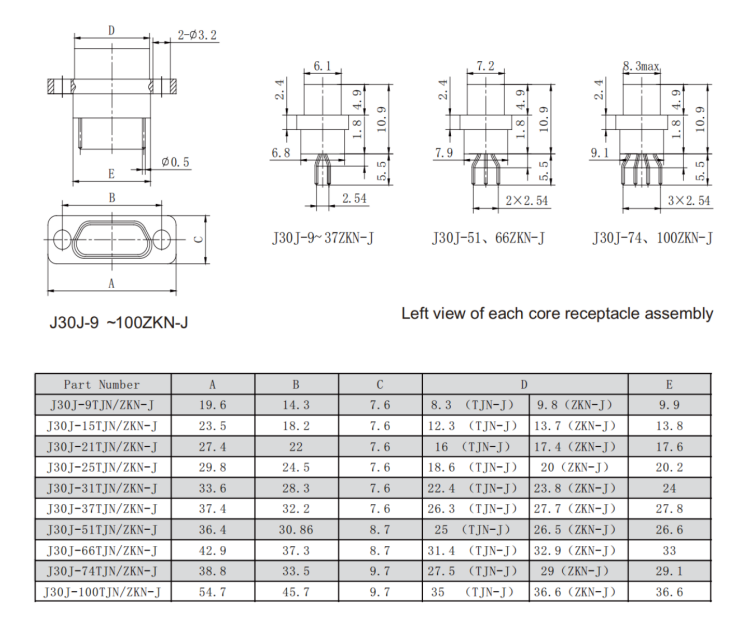

Product Dimensions

Related Products

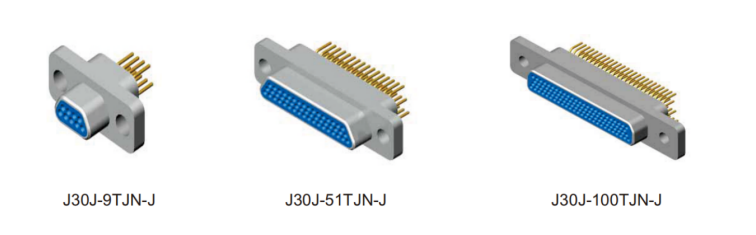

Product Selection Reference

Manufacturing Facilities

Machining Production Workshop

Precision Assembly Production Workshop

Glass-to-Metal Sealed Production Workshop

Certifications

Customer Visits

Product Packaging

Packaging and Shipping

Standard export carton packaging
Customized specifications including logos available per customer requirements
Delivery time: Within 24 hours for stock items, 3-4 weeks for mass production orders (based on quantity and ODM requirements)

Frequently Asked Questions

Are you a trading company or manufacturer?

Our company is a comprehensive manufacturer with 17 years of R&D, manufacturing and sales of Aeronautics and Astronautics and commercial RF microwave transmission components.

What are the main products of your company?

Main products: RF coaxial connectors and adapters, RF cable assemblies, miniature rectangular electrical connectors and cable assemblies, coaxial waveguide converters and cable assemblies, glass insulator sealed connectors and other microwave products.

Does your company accept customized products?

We accept ODM (Original Design Manufacturing).

Does your company provide free samples?

We support free samples with freight paid on delivery.

What is the minimum order quantity of your company's products?

200 pieces. The price is more expensive for orders under 200 pieces.

Which logistics company does your company ship through?

Our company cooperates with international logistics companies DHL, UPS, FedEx, TNT all year round to ensure our customers receive their goods quickly with the lowest shipping cost. We also offer air and sea freight options.

How long does it usually take to receive the goods?

Generally, 3-8 working days for international express, 5-8 working days for air freight.

What payment methods does your company accept?

We accept L/C, T/T, Western Union, Trade Assurance (credit card & T/T).

How long is your warranty?

The warranty period is three months.
